Description

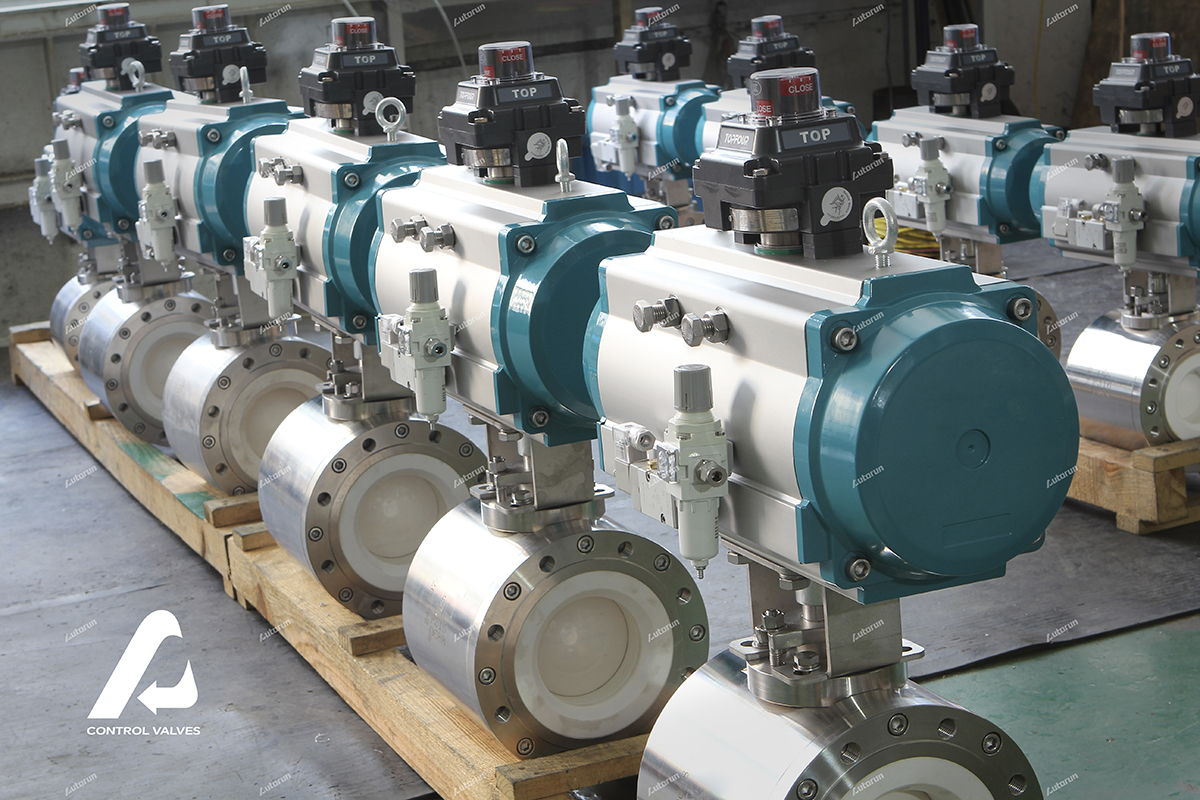

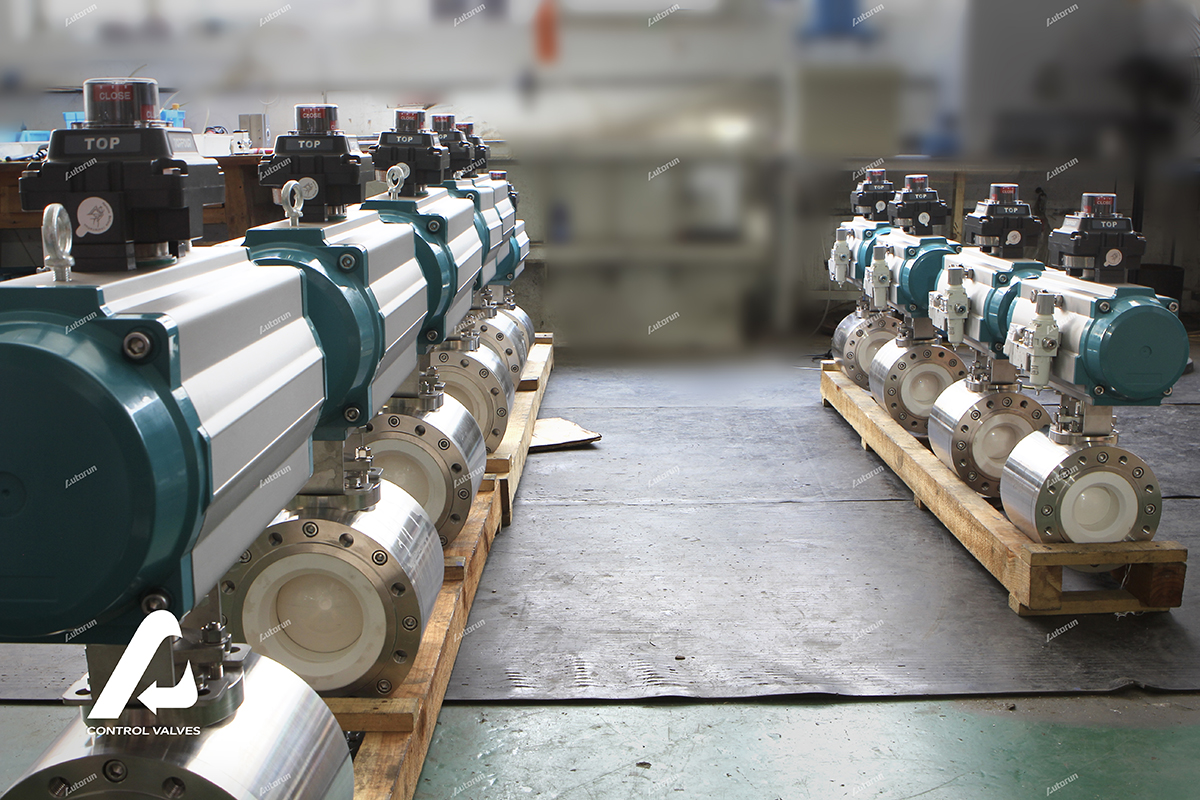

Pneumatic Rotary Cylinder is a pneumatic actuator that uses compressed air to drive the output shaft to reciprocate in a certain range of angles. It is used for object rotation, clamping, valve opening and closing, and robot arm movement. According to the internal structure, the rotary cylinder is divided into two types: gear rack type and vane type. From the external action can be divided into no-stroke center angle rotation and rotation with a downward pressure rise stroke.

Specification

Air pressure: 2.5bar~8bar

Adjustment Range: 90° ± 5°

Ambient temperature: -20 ~ +80° C

Type: Double acting, Single acting (spring return)

Optional accessories: Solenoid valve, Limit switch box, Electro-pneumatic positioner, Air regulator

Lubrication: All the moving parts are coated with lubricants, extending their service life

Life Time: One million time for AT050

Features

Pneumatic Rotary Cylinder uses oil-impregnated bearings that use a piston rod without lubrication.

It can use high temperature sealing material to make the cylinder work normally at 150 °C.

It uses a buried installation and is easy to install. It saves space without any accessories.

It is designed with a simple assembly method for easy assembly and disassembly and maintenance.

It reserves the mounting groove on the body, making the magnetic switch extremely simple when it is fixed and adjusted.
